Benefits of Using Printed Circuit Boards in Electronic Devices

 In Blog

Most electronic manufacturers prefer using Printed Circuit Boards. But there are other options like breadboards or point-to-point construction, yet PCB assemblies are still extremely popular.

Here’s why electronic manufacturers prefer using printed circuit boards in electronic devices.

Saves Time and Effort

The most important benefit of using printed circuit boards is that electronic manufacturers can save more time and effort. If electronic manufacturers connect all the components manually, the assembling will take a lot of time. However, this assembling takes very little time in printed circuit boards once the design is completed.

Usually, the design phase of printed circuit boards takes the most time, but manufacturers can decrease this by using advanced software to design and manufacture PCB assembly. They also test the printed circuit board before installing it into an electronic device.

Easily Repairable

If a PCB assembly isn’t working properly, a Printed Circuit Board manufacturer can easily repair it. This happens because all the polarities are already labeled on the board using a silkscreen, making it easier to check and repair the components. The labeling facilitates both the manufacturing and repairing process.

Little to No Electronic Noise

Many electronic devices produce a lot of noise. However, this isn’t the case with printed circuit boards where the electronic noise is almost undetectable. The noise energy is converted into heat and is released as radiation. A properly designed printed circuit board doesn’t produce any kind of noise. This happens because the components are assembled to make the path lengths minimal and produce less radiation and electromagnetic waves.

More Reliable

Printed Circuit Boards are considered more reliable than other assembly constructions like breadboards. Their reliability depends upon the repeated testing during the design and manufacturing phase. The whole process is automated, making the end product more reliable.

Less Possibility of Components Dislodging

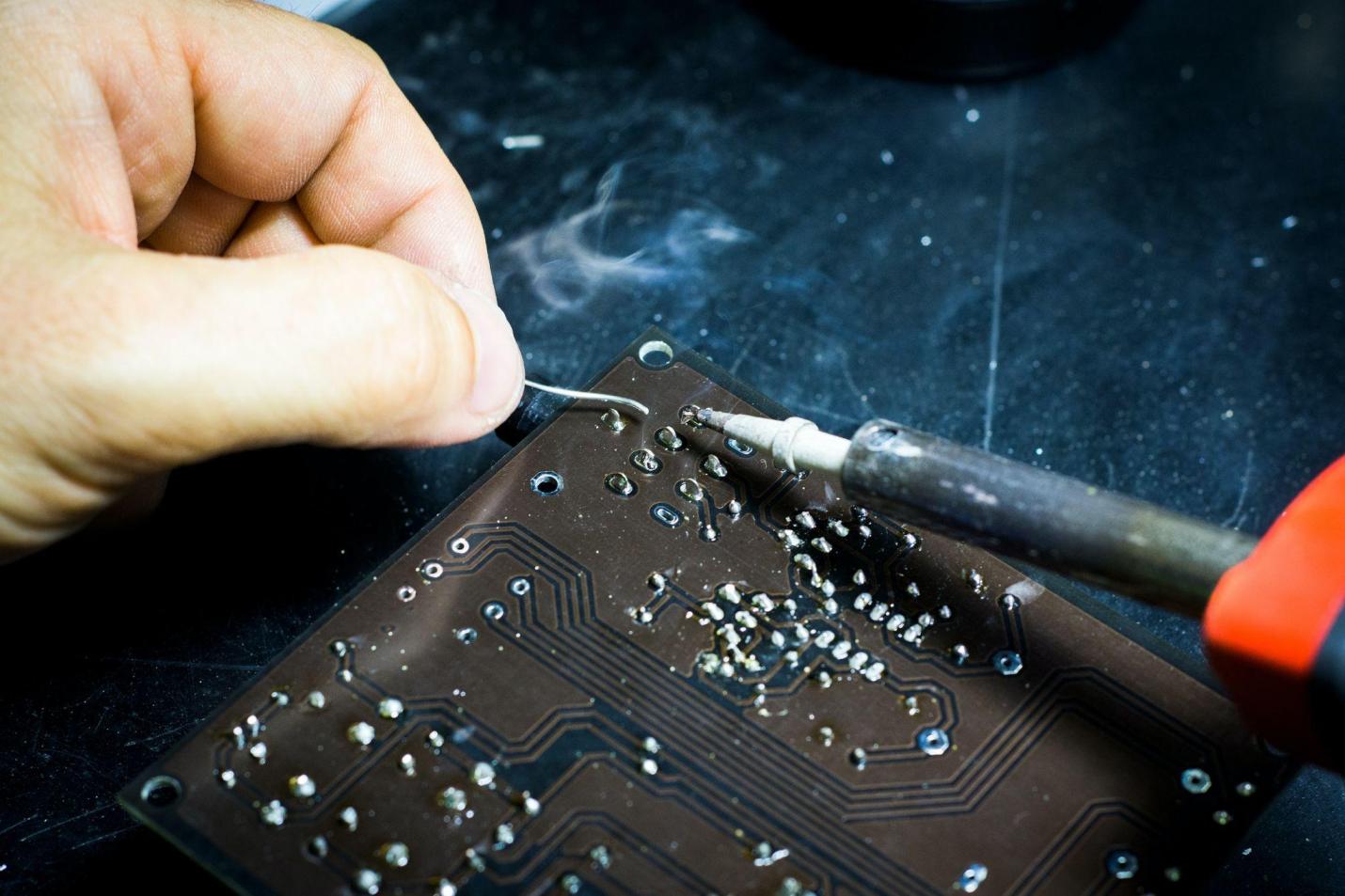

During the building process of a printed circuit board, the manufacturer solders all the components in the board, ensuring that they’re fixed properly in their place. The manufacturers use solder flux that allows no movement on the board. This is why there is little to no possibility of any component dislodging.

Saving Material

Besides saving time and effort, printed circuit boards also save wiring material. Printed circuit boards can hold many components, which are impossible to be connected through wiring. Manufacturers use copper tracks in the place of wires, so the printed circuit board can fit many components without using wires. A printed circuit board is also compact, as it saves space by including many complicated circuit designs on one small board.

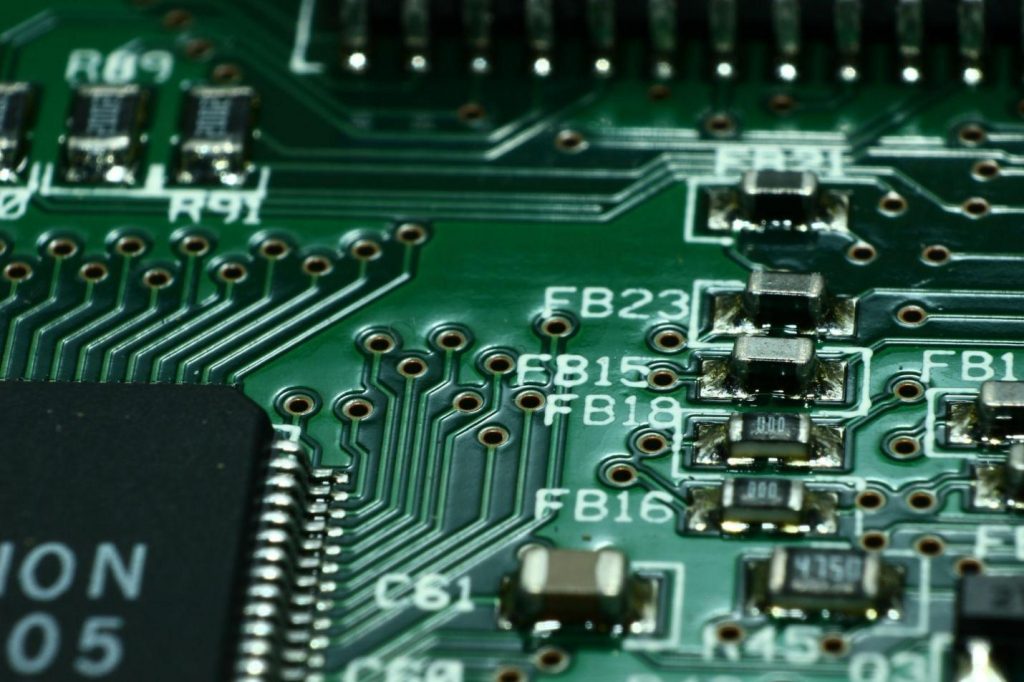

A PCB assembly board

However, if the PCB assembly isn’t designed and tested properly, it can cause major failure risks in any electronic device. At Find An EMS, we allow product manufacturers to connect with reliable PCB assembly services, resulting in high-quality production.

Visit our website or get in touch with us to try our OEMs and EMS provider partnering service.
